PE100 HDPE cijev za dovod vode

Name: Kineski prilagođeni PE100 HDPE cijevi za dovod vode Dobavljači, Proizvođači - Izravna veleprodaja tvornica - KANGYU
Brand: Shandong Kangyu Pipe Industry Co., Ltd
SKU: 171086866

PE100 HDPE water supply pipe (PE Pipe) are used for PE pipe for drinking water, sorted by strength classified according to the intensity of the earlier technological developments. high density polyethylene pipe pressure classes that can be made between Pn4-Pn32 and the production of the desired diameter and size of HDPE pipes system has undergone many tests in 1950, particularly in the carriage of drinking water. After the result of these tests of HDPE Pipes, if all reports are positive then it has no harmful effect on human life. One of today's most widely used pipe is HDPE pipes systems which is economical, easy in handling, efficient performance, easy method of coupling,and quite useful.HDPE pipe for potable water supply .

Pošaljite upit

Opis

Detalji o proizvodu

PE100	0.4 MPa	0.5 MPa	0.6 MPa	0.8 MPa	1.0MPa	1,25 MPa	1,6 MPa	2.0MPa	2,5 MPa
Vanjski promjer	PN4	PN5	PN6	PN8	PN10	PN12.5	PN16	PN20	PN25
	SDR41	SDR33	SDR26	SDR21	SDR17	SDR 13.6	SDR11	SDR9	SDR7.4
	Debljina stijenke (hr)
20	-	-	-	-	-	-	2.0	2.3	3.0
25	-	-	-	-	-	2.0	2.3	3.0	3.5
32	-	-	-	-	2.0	2.4	3.0	3.6	4.4
40	-	-	-	2.0	2.4	3.0	3.7	4.5	5.5
50	-	-	2.0	2.4	3.0	3.7	4.6	5.6	6.9
63	-	-	2.5	3.0	3.8	4.7	5.8	7.1	8.6
75	-	-	2.9	3.6	4.5	5.6	6.8	8.4	10.3
90	-	-	3.5	4.3	5.4	6.7	8.2	10.1	12.3
110	-	-	4.2	5.3	6.6	8.1	10.0	12.3	15.1
125	-	-	4.8	6.0	7.4	9.2	11.4	14.0	17.1
140	-	-	5.4	6.7	8.3	10.3	12.7	15.7	19.2
160	-	-	6.2	7.7	9.5	11.8	14.6	17.9	21.9
180	-	-	6.9	8.6	10.7	13.3	16.4	20.1	24.6
200	-	-	7.7	9.6	11.9	14.7	18.2	22.4	27.4
225	-	-	8.6	10.8	13.4	16.6	20.5	25.2	30.8
250	-	-	9.6	11.9	14.8	18.4	22.7	27.9	34.2
280	-	-	10.7	13.4	16.6	20.6	25.4	31.3	38.3
315	7.7	9.7	12.1	15.0	18.7	23.2	28.6	35.2	43.1
355	8.7	10.9	13.6	16.9	21.1	26.1	32.2	39.7	48.5
400	9.8	12.3	15.3	19.1	23.7	29.4	36.3	44.7	54.7
450	11.0	13.8	17.2	21.5	26.7	33.1	40.9	50.3	61.5
500	12.3	15.3	19.1	23.9	29.7	36.8	45.4	55.8	-
560	13.7	17.2	21.4	26.7	33.2	41.2	50.8	62.5	-
630	15.4	19.3	24.1	30.0	37.4	46.3	57.2	70.3	-
710	17.4	21.8	27.2	33.9	42.1	52.2	64.5	79.3	-
800	19.6	24.5	30.6	38.1	47.4	58.8	72.6	89.3	-
900	22.0	27.6	34.4	42.9	53.3	66.2	81.7	-	-
1000	24.5	30.6	38.2	47.7	59.3	72.5	90.2	-	-
1200	29.4	36.7	45.9	57.2	67.9	88.2	-	-	-
1400	34.3	42.9	53.5	66.7	82.4	102.9	-	-	-
1600	39.2	49.0	61.2	76.2	94.1	117.6	-	-	-

PROFIL TVRTKE:

Shandong Kangyu Pipe Industry Co., Ltd., osnovana 2000. godine, tvrtka je specijalizirana za proizvodnju PP-R,PE,PE-RT,PB plastičnih cijevi i fitinga. Smješten u Linyiju, provincija Shandong, Kina, kontinuirano se posvećujemo međunarodnoj trgovini i dobavljačima cjevovoda koji dolaze iz cijelog svijeta s prilagođenom uslugom. Kako bismo izgradili modernu tvornicu, ulažemo u niz profesionalne mehaničke opreme. Naša tvrtka zapošljava profesionalne i iskusne talente te usmjerava ljudske resurse na cjelovit sustav upravljanja, rada i usluge. Našim partnerima pružamo profesionalnu i učinkovitu uslugu-na jednom mjestu.

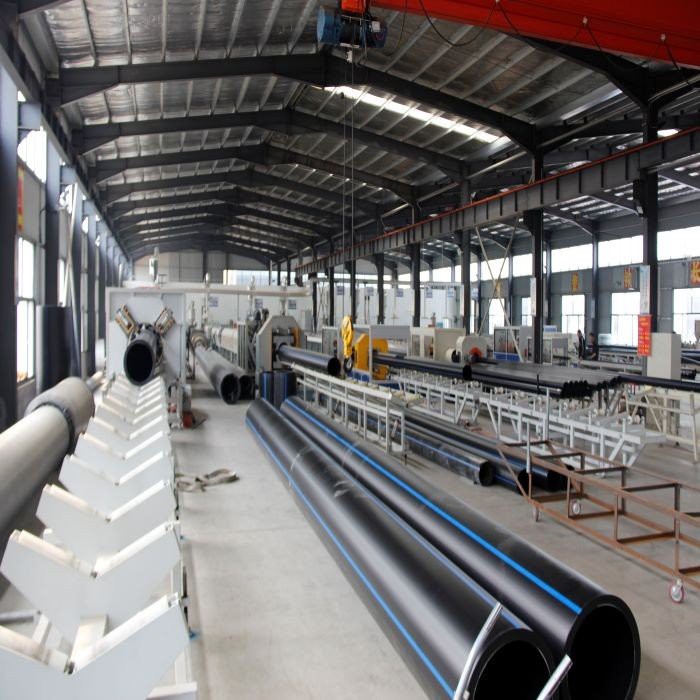

Fotografija tvrtke:

HDPE pipe for potable water supply
